Short wave NIR clear polymer transmission spectra measured with prototype handheld NIR analyzer. Blue is polycarbonate, green is acrylic, purple is polystyrene.

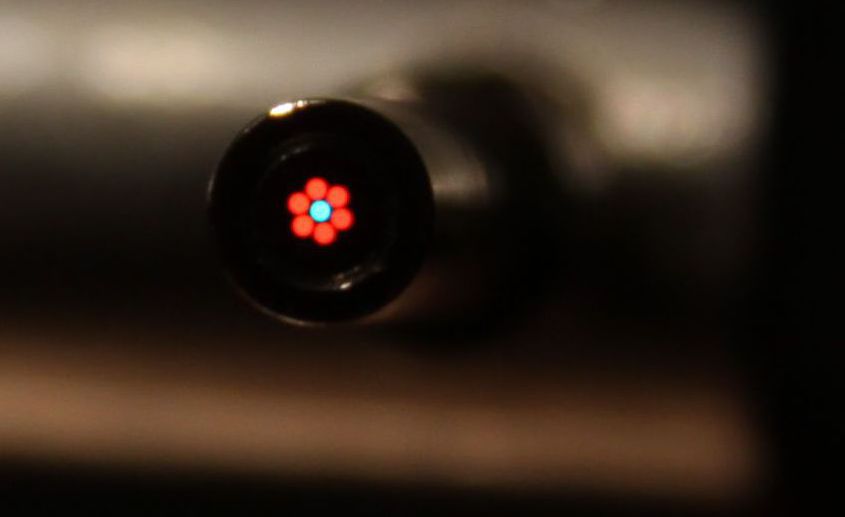

Tip of bifurcated fiber-optic reflection probe used for near-infrared and UV/VIS spectroscopy

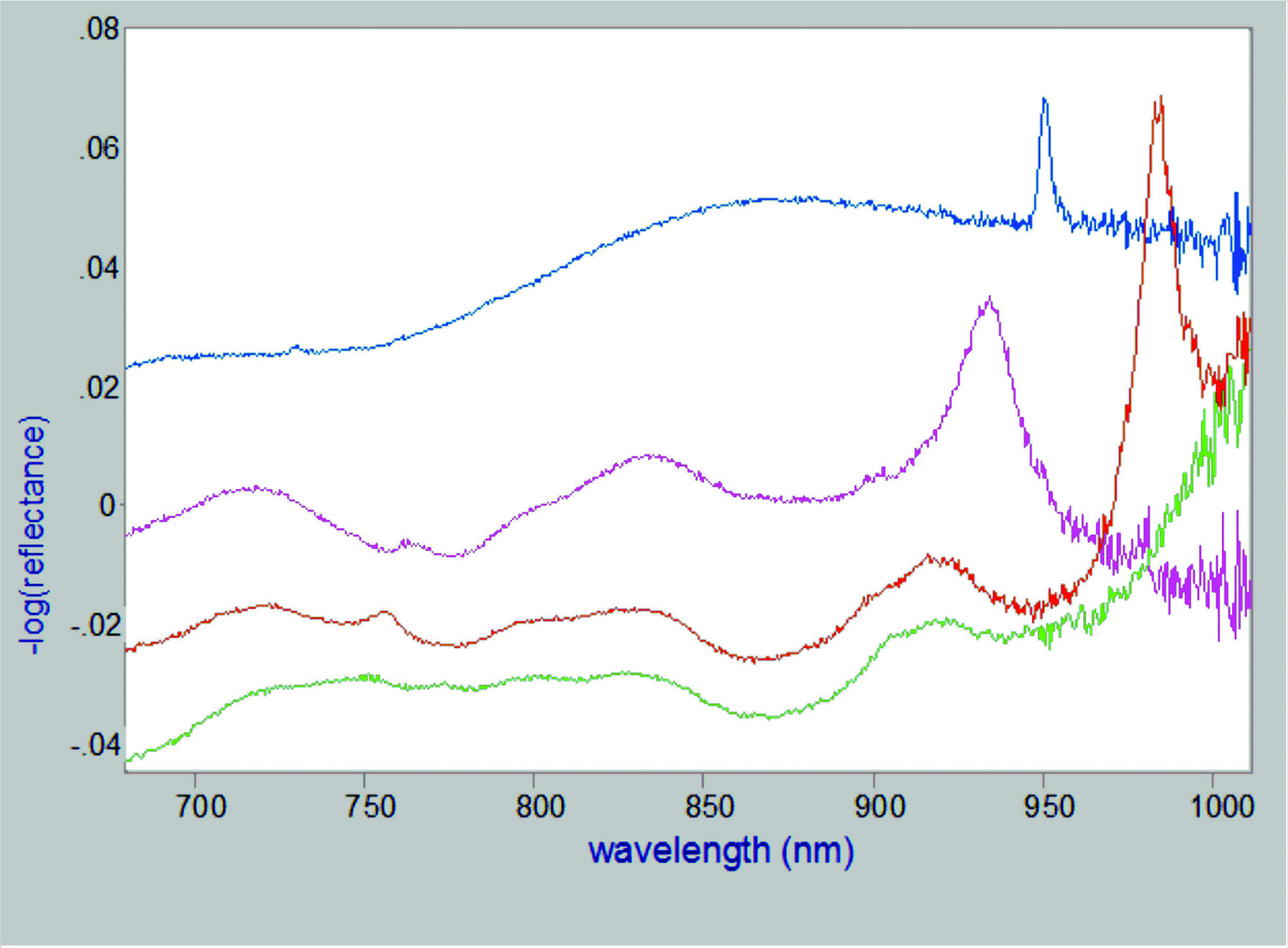

NIR reflection spectra of 4 white powders held in polyethylene bags, measured with new single LED broadband light source, and fiber-optic reflection probe. Blue = talc, purple = paraffin, red = sucrose, green = glucose.

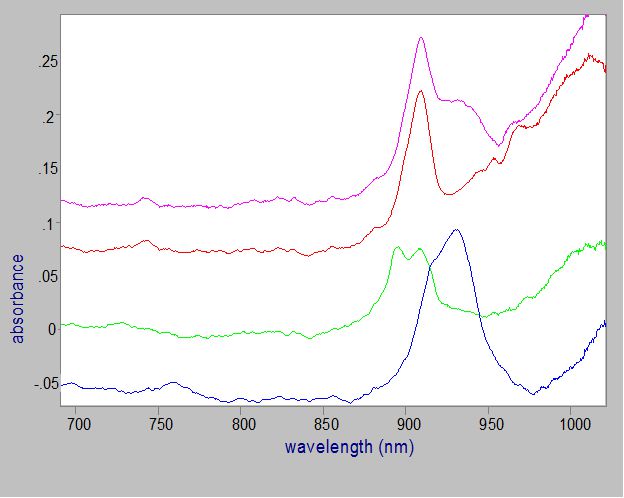

NIR transmission spectra of 4 clear liquids contained in 40 ml glass vials, measured using new single LED broadband solid-state light source. Purple is ethanol, red is isopropanol, green is acetone, blue in mineral oil.

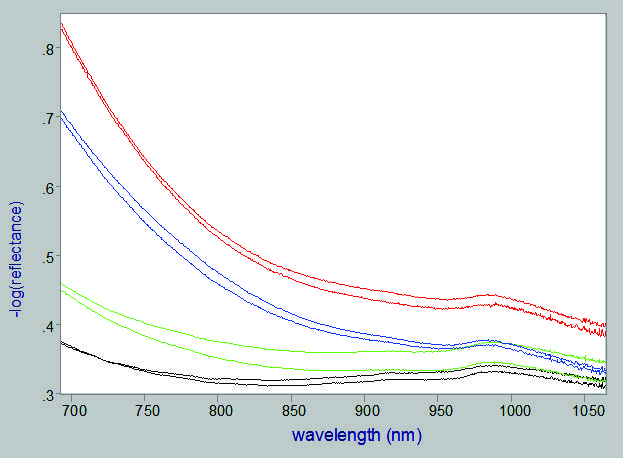

NIR reflection spectra of 4 different types of light colored wood. Red is oak, blue is maple, green is birch and black is pine. The harder woods have a smaller grain size and stronger light scattering in the 700 – 850 nm range.
